Radio Frequency Calculator

Goal

Design a conversion calculator app that focuses on Radio Frequency formulas.
Example calculations: Power Ratio, or Transmission Lines, Waveguide Capacity. In addition I added commonly used conversion values such as volume, length, weight, etc. (before the Calc app in iOS added conversions in the latest releases)

Features

  • Auto conversion on input value

  • Recent calculations

  • Ability to copy results

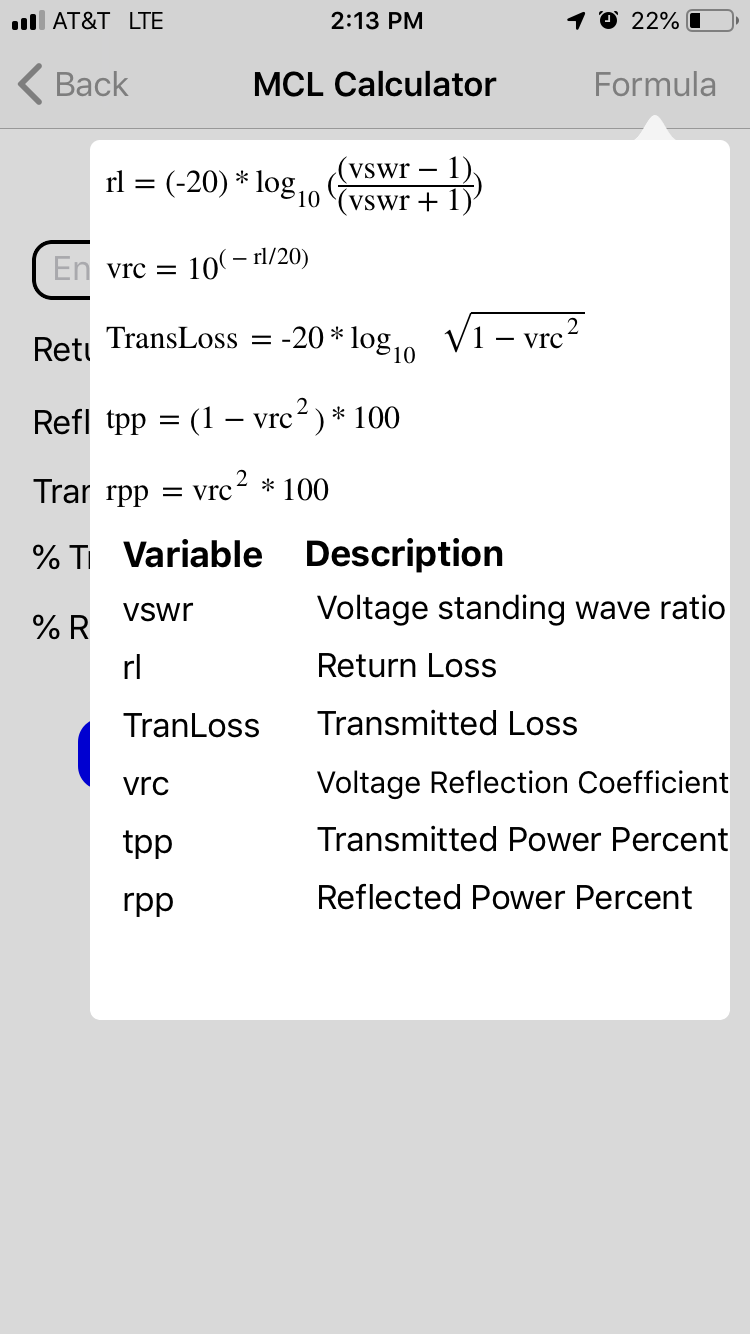

  • Illustrated formula equations with explanatory legends

  • Customized Illustrations

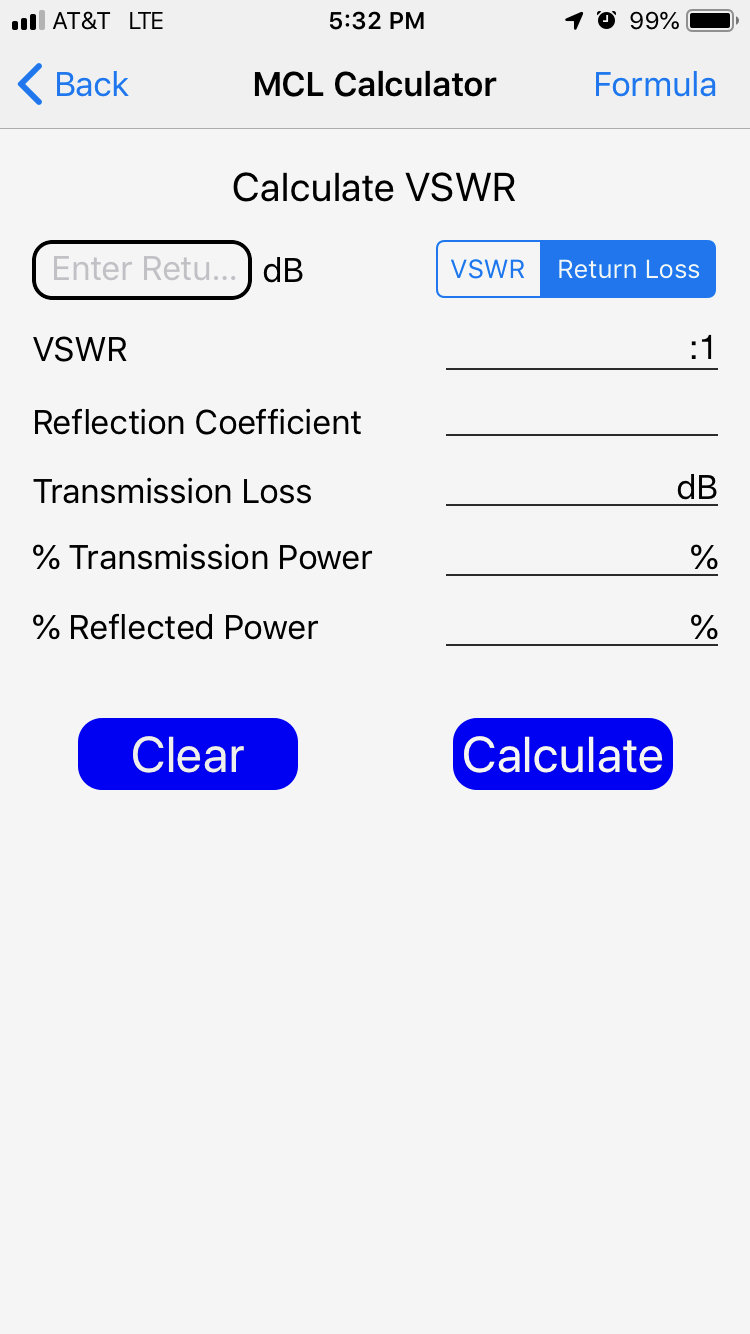

Screen Shot 2019-03-27 at 3.03.27 PM.png
Screen Shot 2019-03-27 at 3.03.18 PM.png
Screen Shot 2019-03-27 at 3.03.02 PM.png



UI Design

Screen Shot 2019-03-27 at 3.02.47 PM.png


Planning - Design Thinking



Design Customization -


Apple APP Store Icon


Coaxial Formula

Sample Illustration for App’s Coaxial Formula

Customized images

Custom images vector wallpaper: Created with Adobe Illustrator (used for blank pages and app background)
